New 2024 Merhow Stampede 4 Horse with Living Quarters

#031045

We ship nationwide! Call for details!

General Construction and Dimensions

• Frame and Build:
  • Aluminum sidewall posts, top rail, rear hoop, and bottom rail
  • 4" cross members
  • Extruded aluminum floor below living quarters (LQ) and horse area
  • One-piece aluminum roof
  • Exterior: White .040 aluminum skin
  • Walls and Ceiling (Horse Area): Lined with white aluminum
  • Warranty:
    • 8-year structural warranty
    • 2-year Merhow living quarters warranty

Horse Area Features

• Stalls:
  • 40" stall setting (measured center of hinge pins)
  • Lower stud divider on front divider
  • Padded chest and butt straps
  • Padded dividers with airflow shoulder sections
• Flooring: Rubber mats
• Ties: 2 interior and 2 exterior per horse stall
• Windows: 1 two-way roof vent per horse stall
• Lighting:
  • 12V load light over the rear horse loading door
  • 12V load lights over horse area (roadside and curbside)
• Escape Door:
  • Standard on 3-horse and larger models
  • Equipped with paddle latch and flip-up camper step
• Safety:
  • Lower section of walls lined with ballistic liner
  • Rubber bumpers under both rear doors

Rear Tack and Storage Features

• Collapsible Rear Tack: With tie-back
• Flooring: Rubber mats in rear tack
• Saddle Racks:
  • 1 saddle rack and location in rear tack
  • 1 saddle boss per horse stall
• Blanket Bars:
  • 4-tier aluminum blanket bar installed on rear tack door
• Hooks and Storage:
  • 1 set of heavy-duty bridle hooks
  • Aluminum brush box installed on rear roadside tack door
• Lighting: 12V light in rear tack
• Protection: Ply-felt lining on rear roadside door and wall

Exterior and Utility Features

• Axles and Brakes: Dexter EZ-lube torsion axles with electric brakes on all wheels
• Wheels: 4 aluminum wheels with a steel spare
• Jack: Single hydraulic jack
• Doors:
  • Wrap-around hinges with hold-backs for rear doors
  • Camper door with friction hinge and flip-up step
• Lighting: LED clearance lights
• Battery Storage: Lockable aluminum battery box
• Spigot: Exterior water spigot

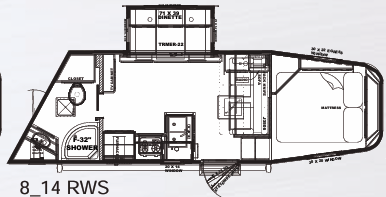

Living Quarters Standard Features

• Kitchen:
  • Built-in microwave
  • 2-burner cooktop
  • Drawers for storage
• Comfort:
  • RV queen mattress in the front bunk
  • 19,000 BTU furnace
  • Ducted A/C
• Water Systems:
  • 41-gallon underbelly freshwater tank
  • 31-gallon gray and black water waste tanks
  • 6-gallon direct spark ignition water heater
• Bathroom:
  • Foot-flush RV toilet
  • Shower with sky dome above
• Electronics:
  • 32" Smart TV
  • TV antenna with booster
  • Radio with inside and outside speakers
  • 120V outlets in bunk, main LQ, and bathroom
• Other Features: Walk-through door between LQ and horse area
